Tunnel Kiln & Rack Dryer / Single Layer Dryer Clay Brick Manufacturing Plant
High-Efficiency | Fully Automated | Energy-Saving Brick Production Solution. Complete turnkey solution for modern clay brick manufacturing with advanced tunnel kiln and integrated drying systems.
🧱 Overview
Next Engineering Solutions Ltd provides advanced Tunnel Kiln integrated with Single Layer Dryer (SLD) / Rack Dryer systems for modern clay brick manufacturing. This technology ensures high-capacity production, superior product quality, and optimized energy consumption through automation and heat recovery.
In modern brick plants, drying is as critical as firing. The choice between Single Layer Dryer and conventional tunnel dryers directly impacts quality, efficiency, and overall investment return.
⚙️ Fully Automated System
🔥 Energy Efficient Technology
🏭 High Production Capacity
🌱 Eco-Friendly Operation

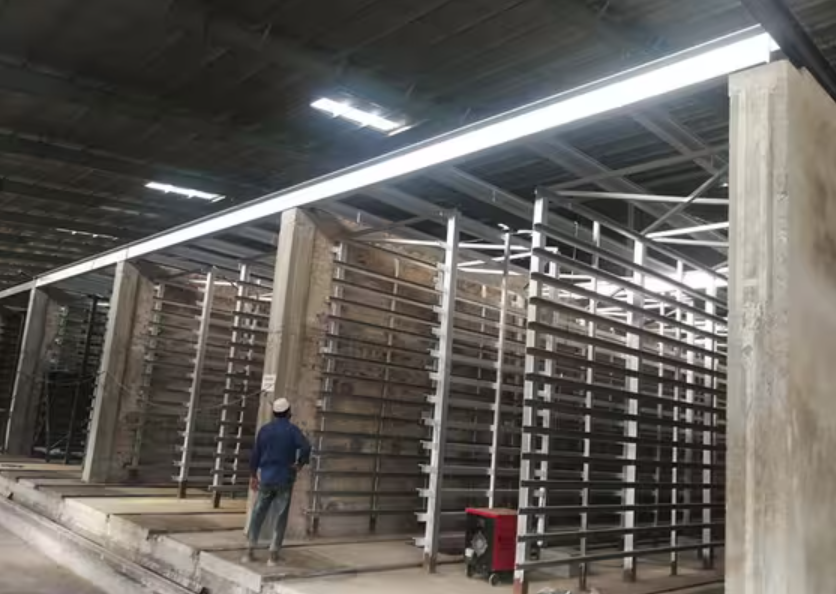

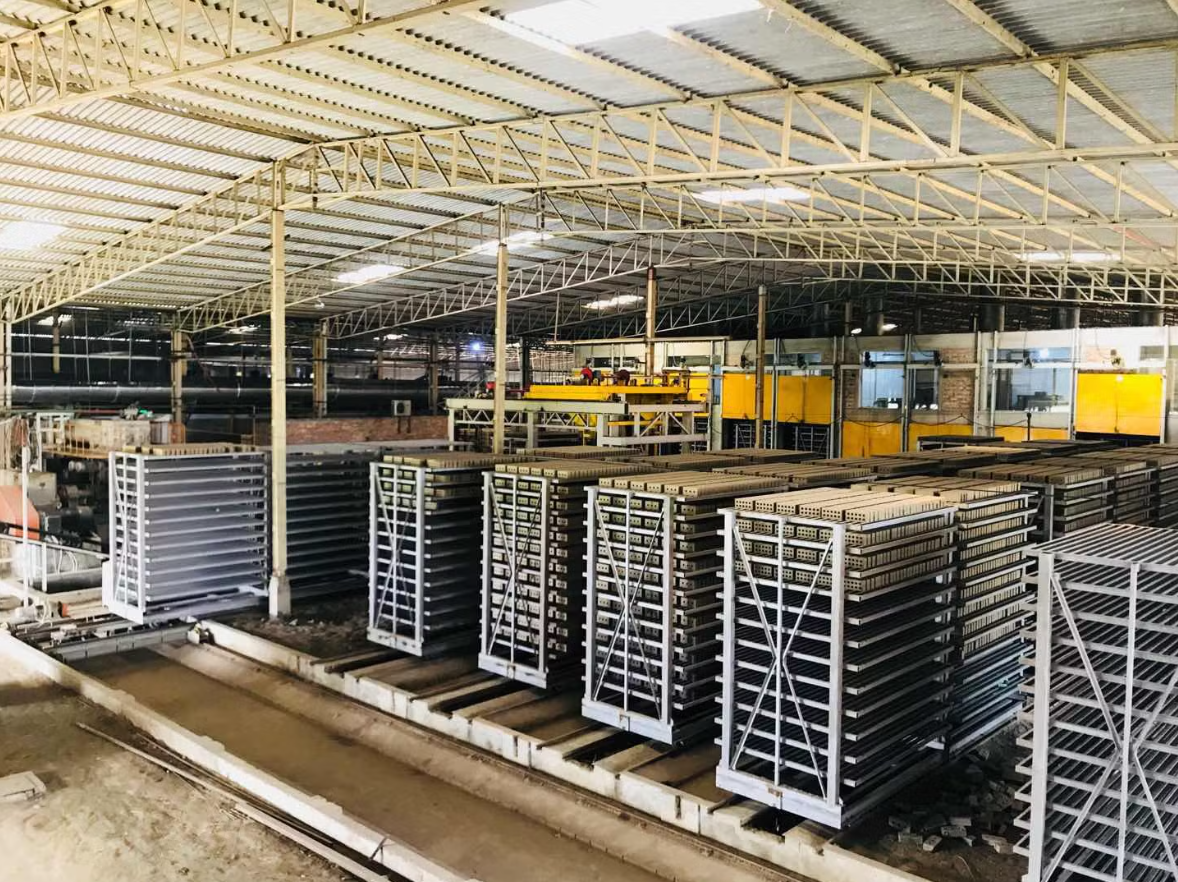

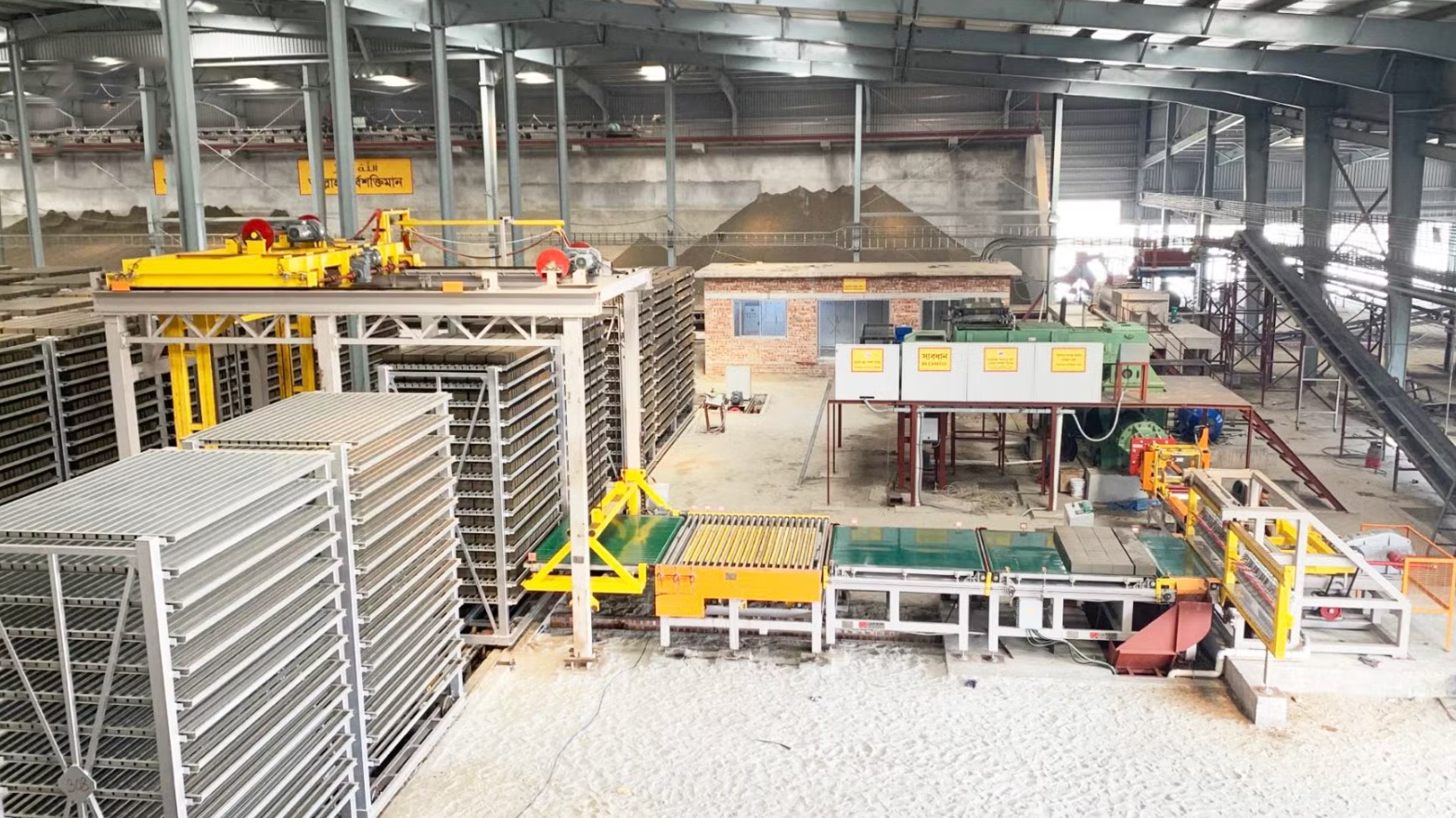

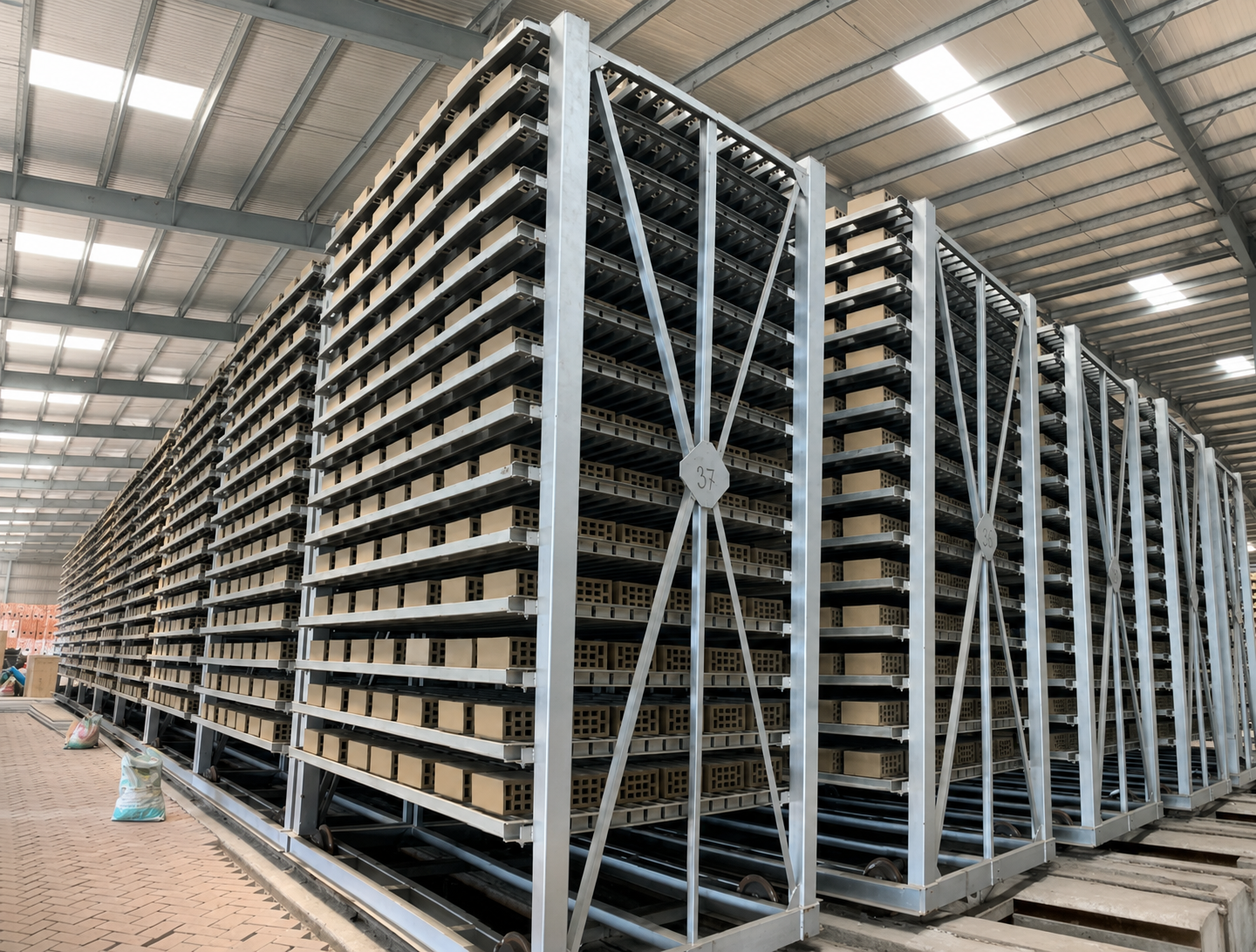

🔷 Single Layer Dryer System (SLD)
🔬 What is a Single Layer Dryer/ Rack Dryer

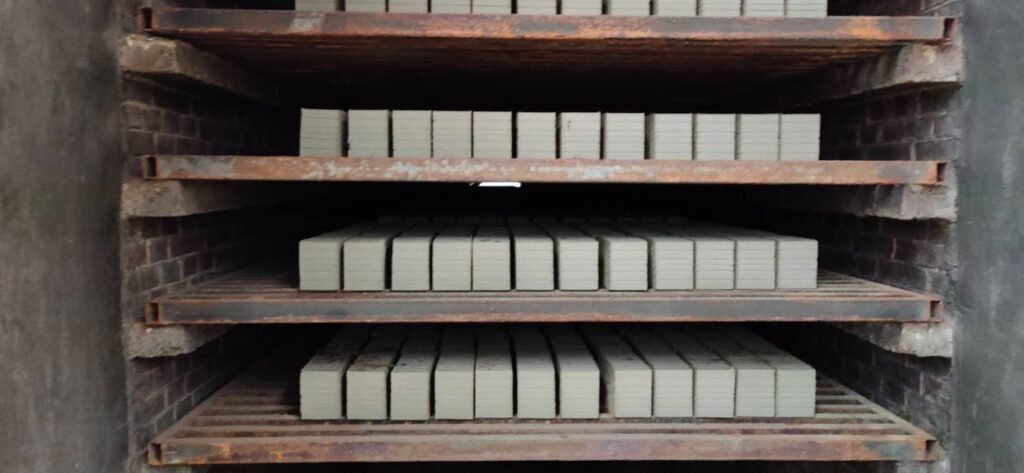

A Single Layer Dryer / Rack Dryer is a continuous drying system where:
- Bricks are placed in single layer trays or racks
- Hot air flows evenly across all bricks
- Drying is controlled through multiple temperature and humidity zones
- Waste heat from the tunnel kiln is reused
👉 This results in precise, uniform, and controlled drying
🌬️Single Layer Dryer – Key Benefits
- Uniform Drying: Bricks placed in single layer → equal airflow → minimal cracks & warping
- High Quality Output: Consistent moisture removal → better strength & color after firing
- Energy Efficient: Uses waste heat from kiln → lower fuel consumption
- Process Control: Multi-zone temperature & humidity control → stable operation
- Automation Ready: Works with robotic stacking & auto handling
💡 Ideal for large-scale, modern brick plants.

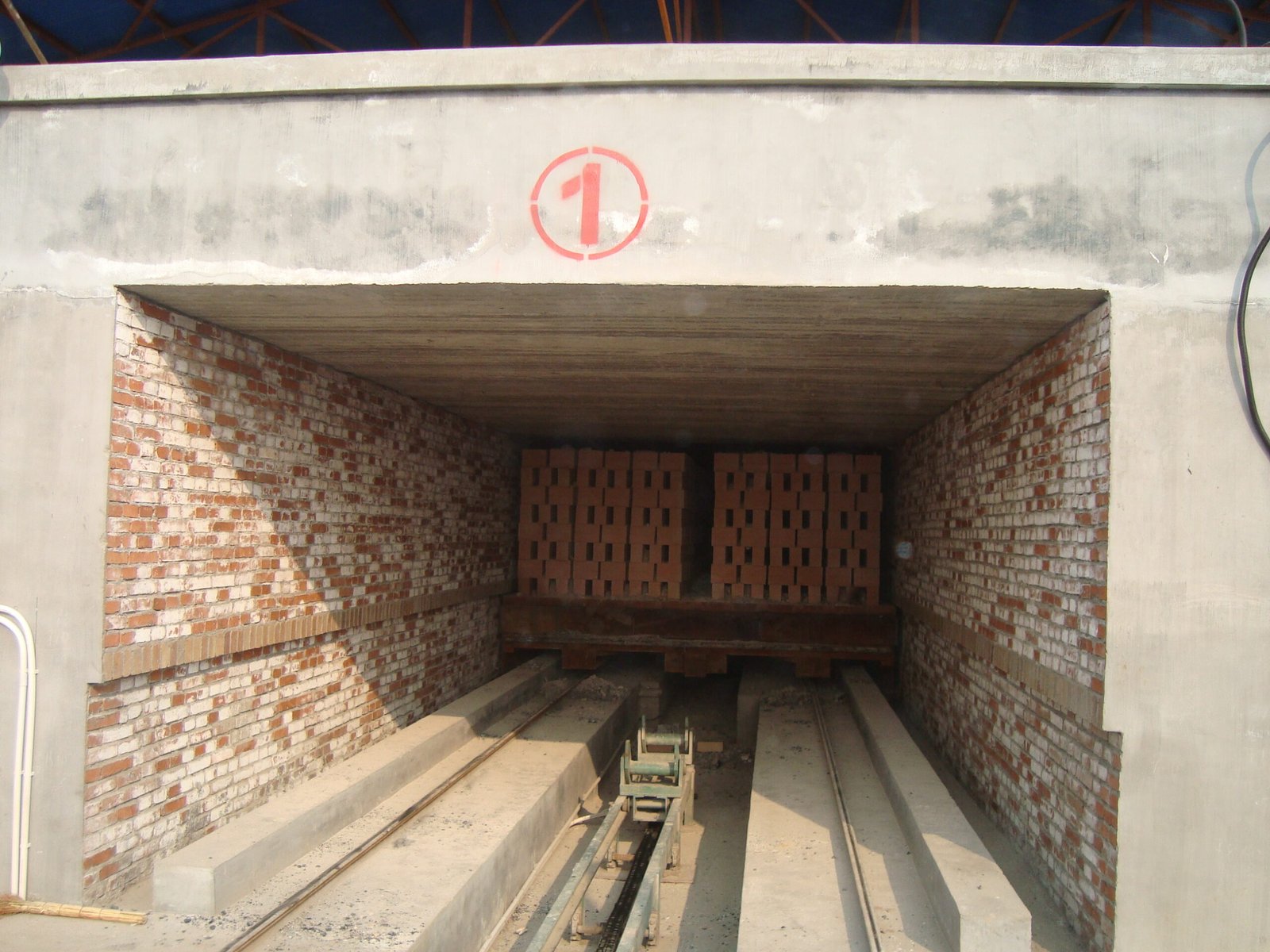

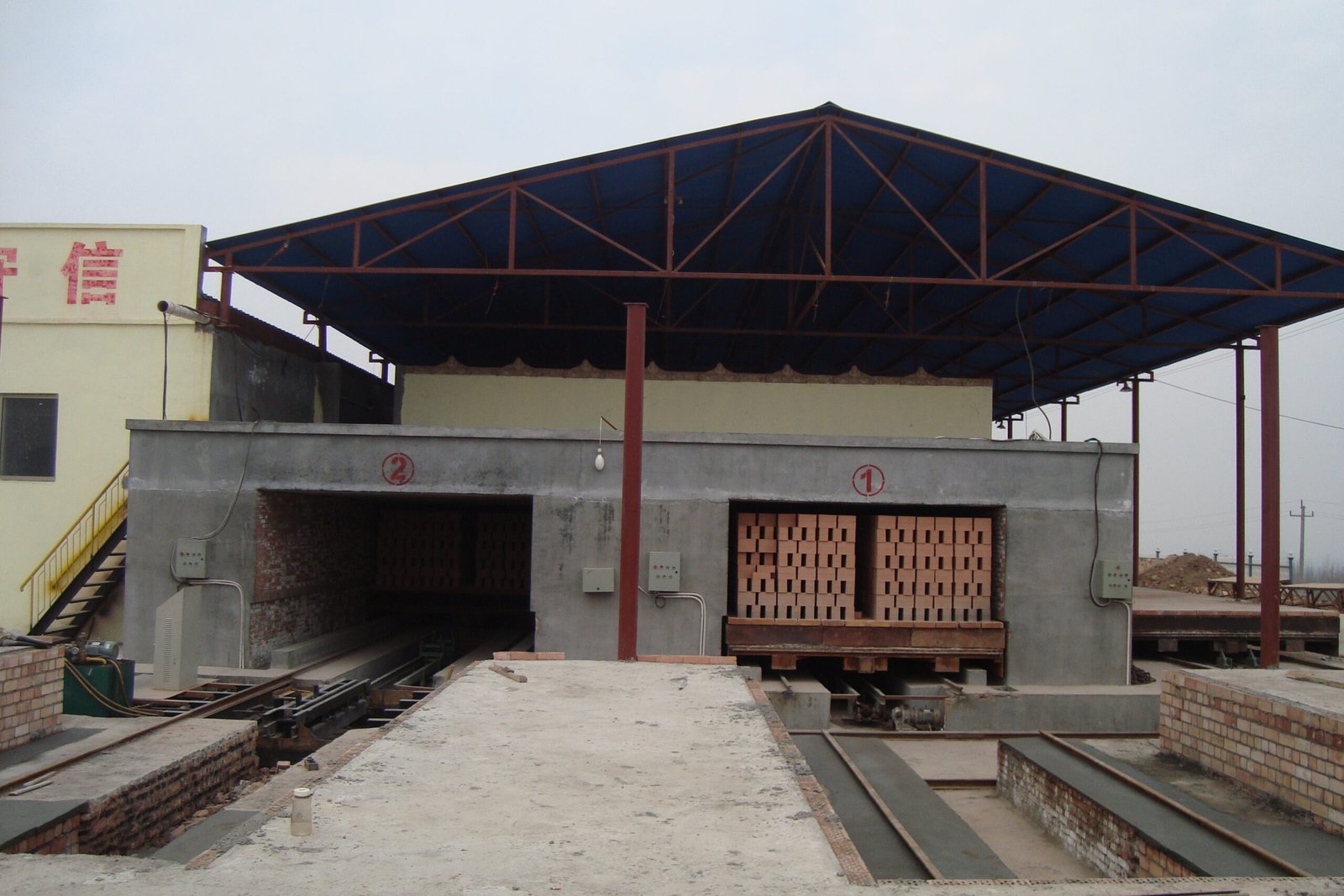

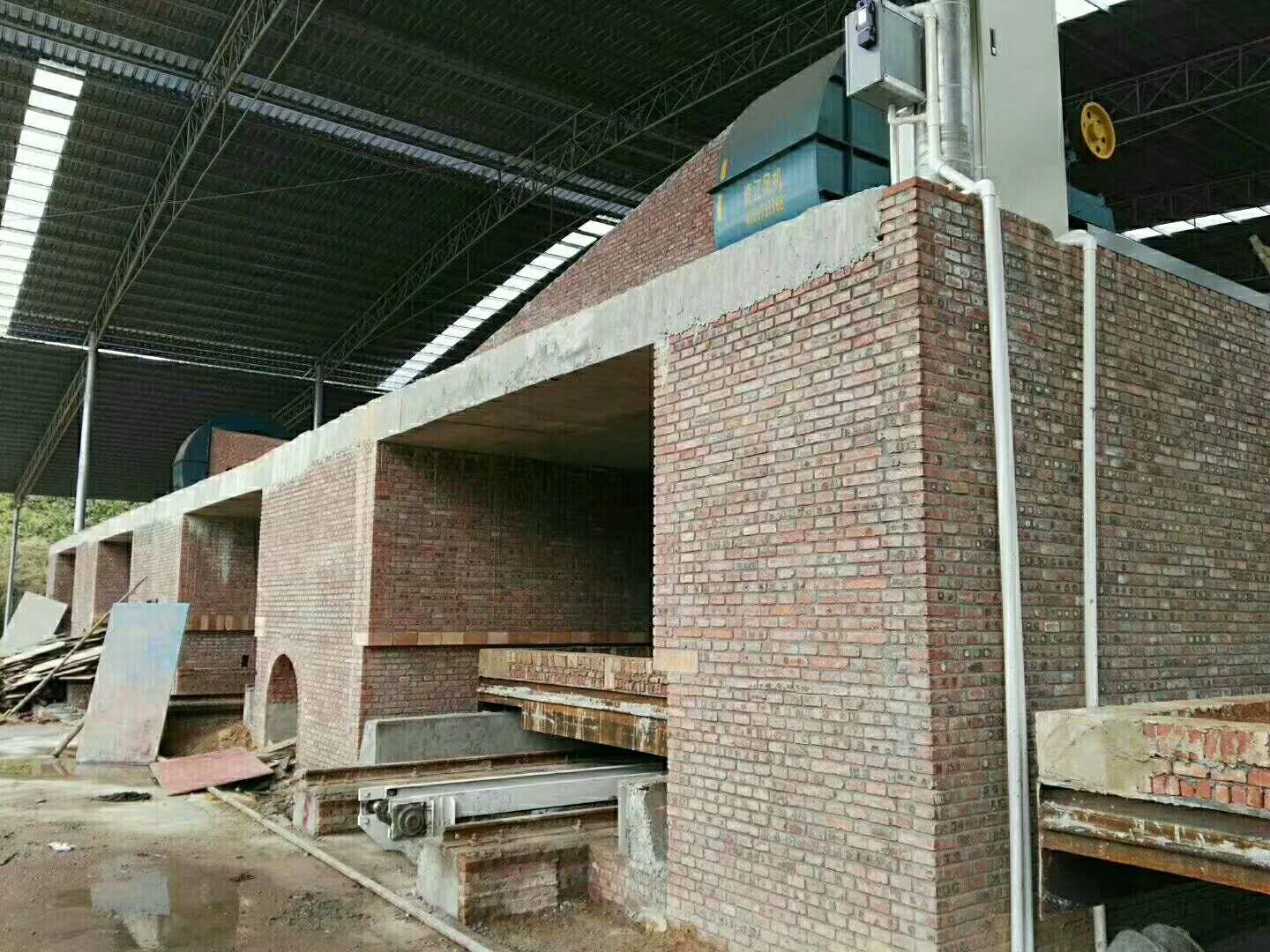

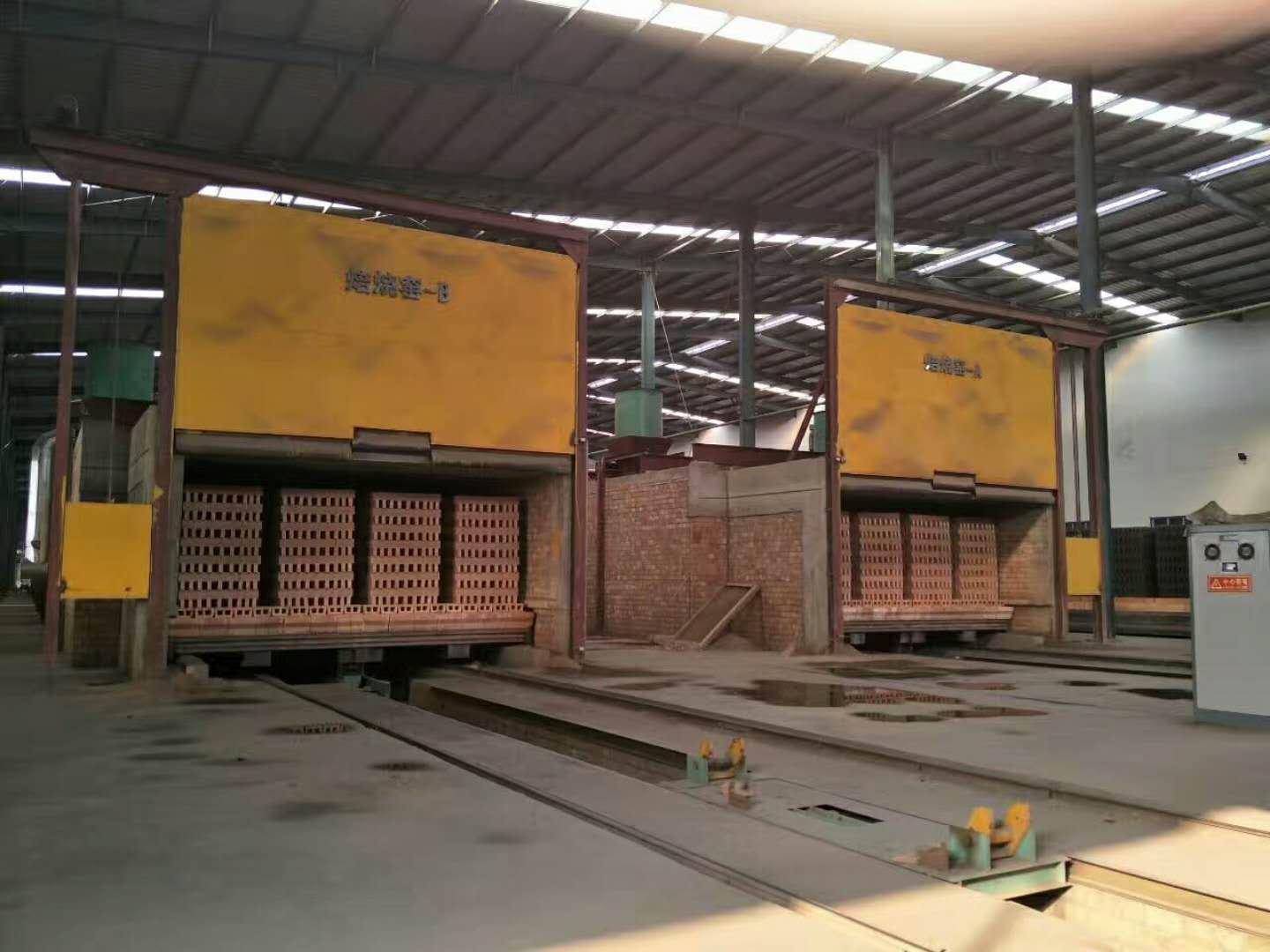

🔥 Tunnel Kiln System
The Tunnel Kiln is a continuous, counter-flow furnace that serves as the heart of a modern clay brick manufacturing plant. Unlike traditional intermittent kilns, the tunnel kiln is designed for high-capacity, automated production.
Key Characteristics

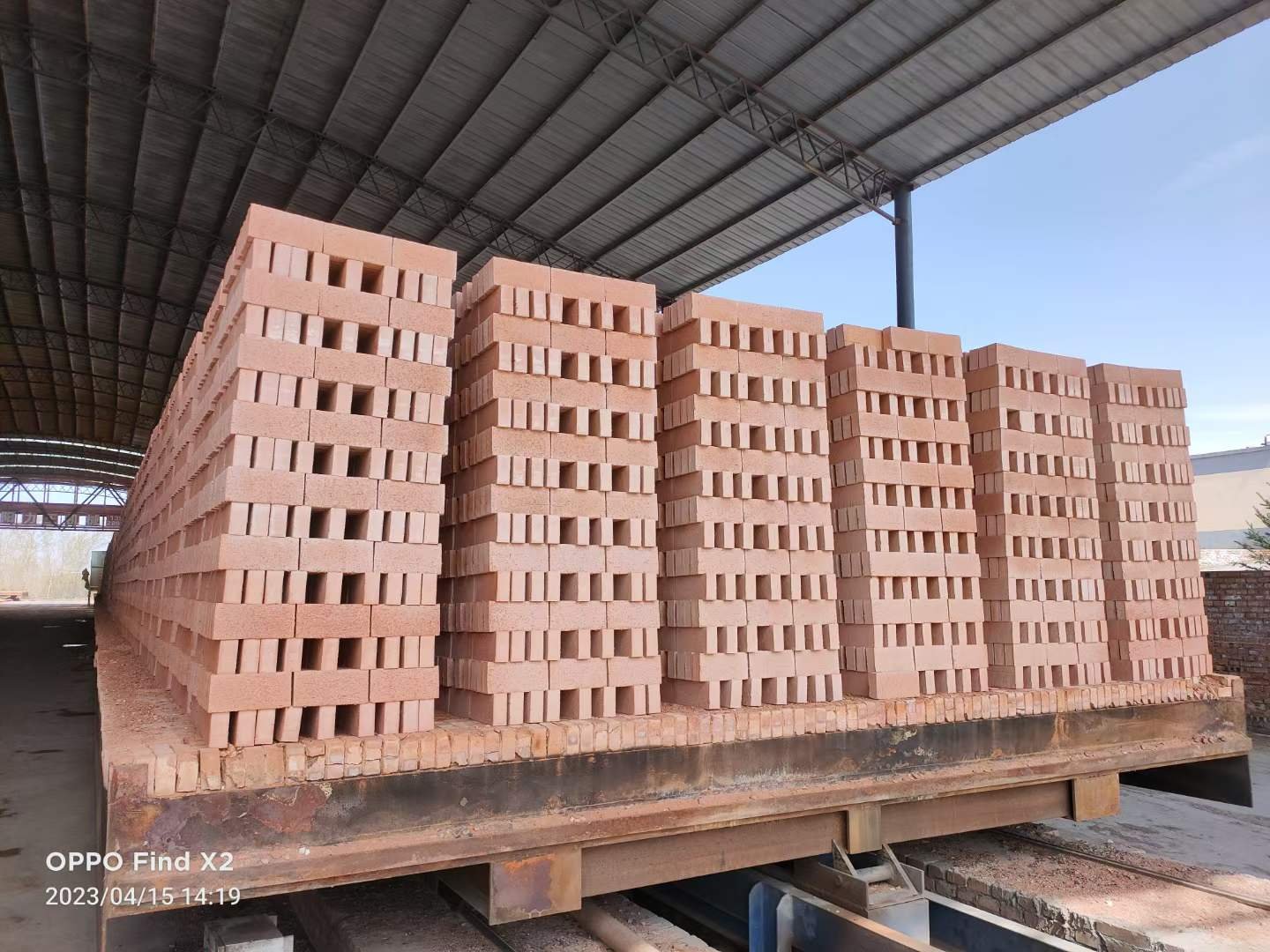

- Continuous Operation: The kiln remains at a constant temperature 24/7. Green bricks enter one end on “kiln cars,” and finished bricks emerge from the other.
- Zonal Temperature Control: The interior is divided into three main zones: the Pre-heating zone, the Firing (High Temperature) zone, and the Cooling zone.
- Uniform Quality: Because the temperature and atmosphere are precisely controlled by automated systems, the resulting bricks are strong, durable, and consistent in color and size.
The Firing Process
- ♨️Pre-heating: As kiln cars move forward, they are gradually warmed by hot air traveling in the opposite direction, removing any remaining moisture.
- 🔥Vitrification: In the firing zone, temperatures reach approximately 900°C to 1100°C (depending on clay type), causing the clay particles to fuse together into a hard, ceramic state.
- 🔥Controlled Cooling: The bricks pass through a cooling section where temperature is lowered slowly to prevent cracking or “thermal shock” before they are unloaded.

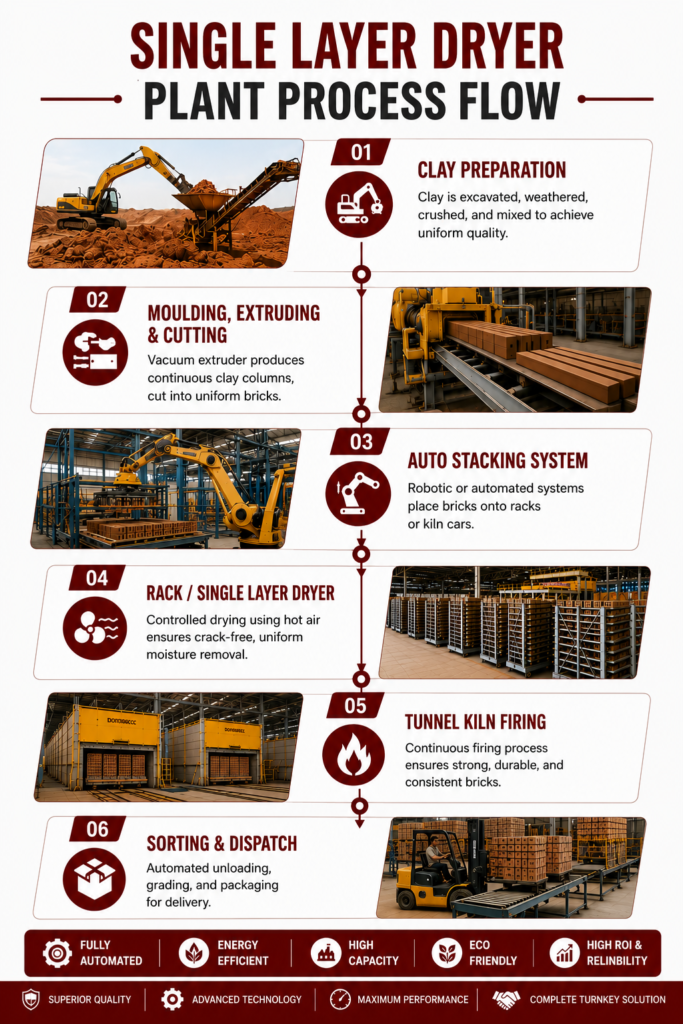

🔄 Complete Plant Process Flow
1. 🏗️ Clay Preparation
Clay is excavated, weathered, crushed, and mixed to achieve uniform quality.
2. 🧩 Extrusion & Cutting
Vacuum extruder produces continuous clay columns, cut into uniform bricks.

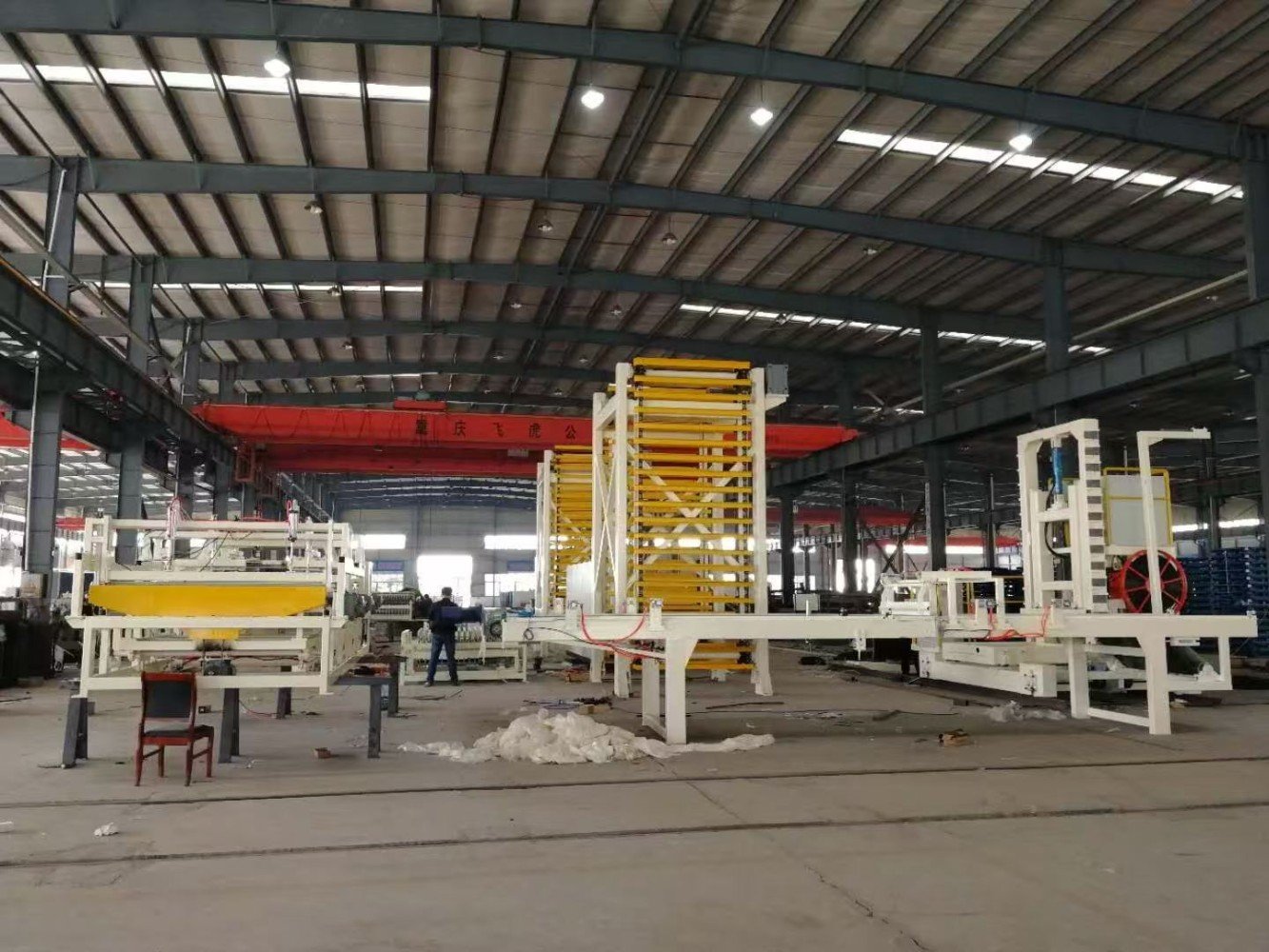

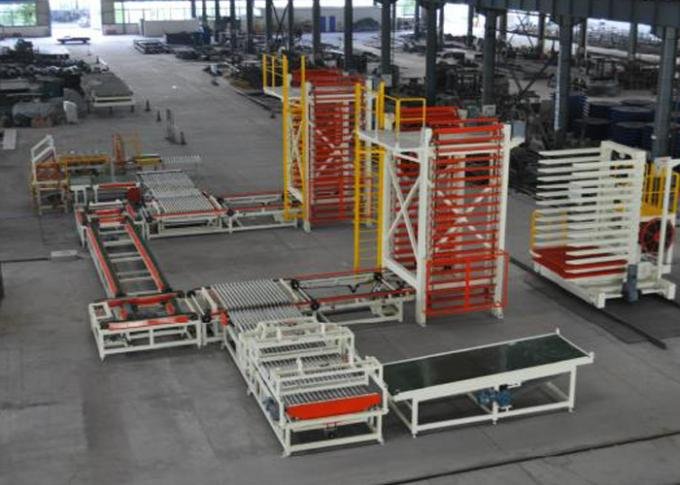

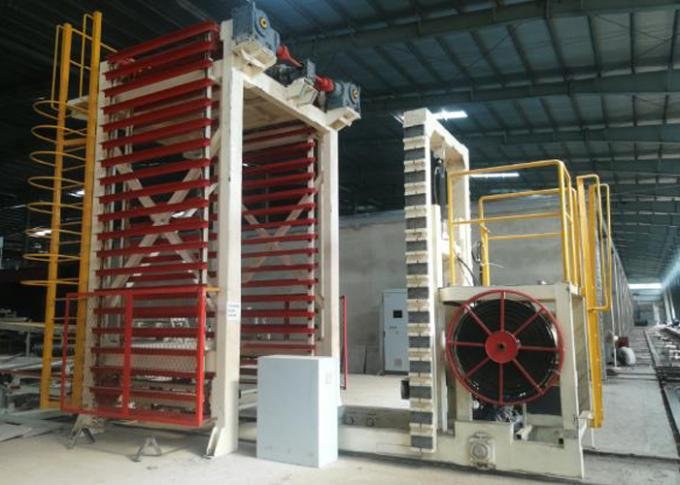

3. 🤖 Auto Stacking System
Robotic or automated systems place bricks onto racks or kiln cars.
4. 🌬️ Rack / Single Layer Dryer
Controlled drying using hot air ensures crack-free, uniform moisture removal.

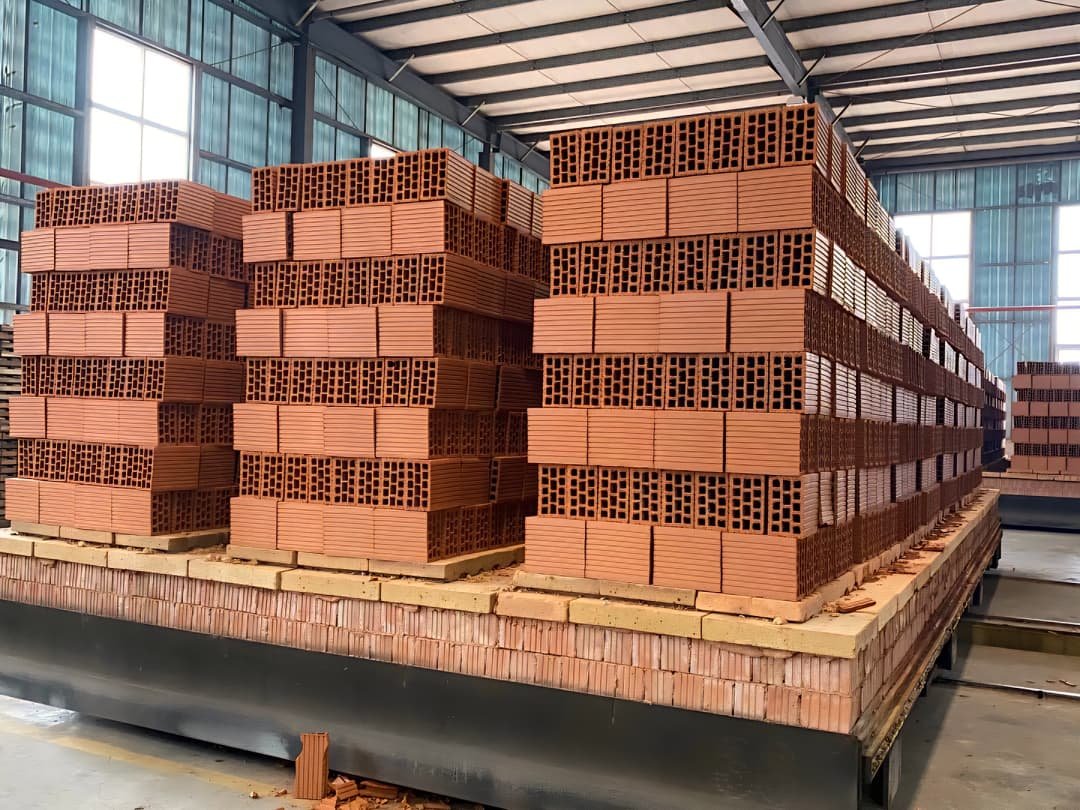

5. 🔥 Tunnel Kiln Firing
Continuous firing process ensures strong, durable, and consistent bricks.
6. 📦 Sorting & Dispatch
Automated unloading, grading, and packaging for delivery.
🏭 Project Suitability – Where to Use Single Layer Dryer System
| ✔ Best For | ❌ Not Ideal For |
| Industrial Scale: Medium to large plants requiring high volume. | Traditional Fields: Small-scale, seasonal brickfields. |
| Automation: Fully or semi-automated production lines. | Manual Labor: Low-budget operations relying on hand-molding. |
| Premium Quality: Projects targeting export-grade bricks. | Minimal Investment: Projects where capital cost is the primary barrier. |
| Consistency: High demand for uniform color and size. | Local Utility: Simple bricks for low-stress rural construction. |
| High ROI: Business models focused on long-term profitability. |
📊 Production Capacity
| System | Production Level |
|---|---|
| Single Layer Dryer | Medium to Large |
| Small Tunnel Dryer | Small to Medium |
| Conventional Tunnel Dryer | Medium to Large |
👉 Single Layer Dryer is designed for modern industrial-scale production, not small manual setups.
⚖️ Final Comparison Summary
| Combination | Quality | Uniformity | Defects | Production Level |
|---|---|---|---|---|
| SLD + Tunnel Kiln | ⭐⭐⭐⭐⭐ | Excellent | Very Low | Large |
| Tunnel Dryer + Tunnel Kiln | ⭐⭐⭐⭐ | Good | Low–Medium | Medium–Large |
| Small Tunnel Dryer + Hoffman Kiln | ⭐⭐⭐ | Moderate | Medium–High | Small–Medium |
🧱 Applications
- Solid Clay Bricks
- Hollow & Perforated Bricks
- Facing Bricks
- Engineering Bricks
🏢 Why Next Engineering Solutions Ltd
- 📐 Complete Plant Design & Engineering
- 🏗️ Kiln & Dryer Construction Expertise
- ⚙️ Machinery Supply & Integration
- 🧑🔧 Installation & Commissioning
- 🎓 Technical Training & Support
Next Engineering Solutions Ltd – Delivering Advanced Brick Manufacturing Technology with Global Standards.
