Hybrid Hoffman Kiln for Modern Clay Brick Production
Next Engineering Solutions Ltd provides complete Hybrid Hoffman Kiln brick plant solutions for investors who need a reliable, energy-efficient and cost-effective clay brick manufacturing system.
The HHK system uses continuous moving-fire technology, internal fuel combustion, controlled airflow and waste heat recovery. This makes it suitable for producing high-quality fired clay bricks with lower fuel waste and stable production performance.
For medium and large brick projects, HHK can be integrated with a small tunnel dryer, automatic brick handling system and modern clay preparation machinery to improve drying quality, reduce weather dependency and increase operational efficiency.
Continuous Moving Fire Kiln with Waste Heat Recovery
The Hybrid Hoffman Kiln operates through a continuous moving-fire system. The firing zone gradually shifts through multiple chambers arranged in an annular circuit, allowing non-stop brick firing.
Moving Fire Zone
Firing zone shifts chamber by chamber for continuous operation.
Internal Fuel
Pulverized coal is mixed with clay for internal combustion.
Forced Draft
Blower-controlled airflow supports stable combustion.
Heat Recovery
Waste heat supports drying and preheating.
Why Choose Hybrid Hoffman Kiln?
HHK is a proven brick firing technology for investors looking for energy saving, better product quality, continuous operation, and long-term project reliability.
High Fuel Efficiency
Internal fuel combustion and heat recovery reduce fuel waste and improve production economy.
Uniform Brick Quality
Controlled firing supports consistent color, strength, durability, and lower rejection.
Continuous Operation
HHK is suitable for stable 24/7 production when plant operation and raw material flow are properly planned.
Lower Emission
Better combustion control and heat utilization make HHK cleaner than traditional brick firing methods.
HHK Kiln, Dryer & Automatic Brick Handling Views
Organized project photos showing kiln chamber, brick loading, green brick handling, dryer system and clay brick machinery sections.
HHK Internal Chamber
Brick Loading Pattern
Kiln Loading System
Small Tunnel Dryer Area
Automatic Setting Machine
Kiln Door View
Typical Hybrid Hoffman Kiln Plant Data
Final design depends on raw material, brick size, daily production target, dryer selection, fuel type, automation level and local site condition.
| Item | Typical Specification | Project Note |
|---|---|---|
| Kiln Type | Hybrid Hoffman Kiln | Continuous moving fire chamber kiln |
| Chamber / Door | 18–26+ chambers / commonly 24–26 door | Customized as per capacity and layout |
| Daily Production | 40,000 – 60,000+ bricks / day | Depends on chamber size, loading, dryer and operation |
| Firing Temperature | Approx. 950°C – 1050°C | Adjusted according to clay composition |
| Fuel System | Internal coal mixing + top fuel feeding | Coal, biomass or mixed fuel options |
| Dryer System | Natural drying / small tunnel dryer / 10-channel dryer | Recommended for weather-independent production |
| Land Requirement | Approx. 4–8 acres | Depends on capacity, dryer, storage and automation |

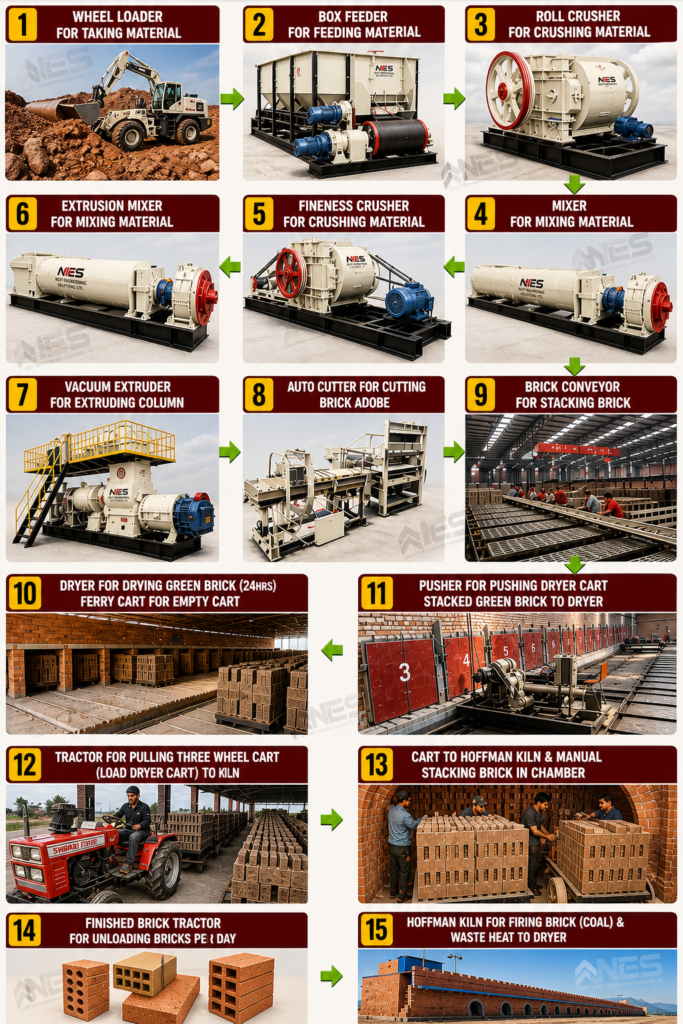

Hybrid Hoffman Kiln Brick Manufacturing Process
From clay preparation to finished brick dispatch, the HHK plant must be designed as one balanced production system.
Clay Excavation & Storage
Clay is collected, stored and weathered for better workability.
Crushing & Screening
Clay is crushed and screened for uniform particle size.
Internal Fuel Mixing
Pulverized coal is mixed with clay for internal combustion.
Vacuum Extrusion
Extruder forms dense green brick columns with stable shape.
Cutting & Stacking
Automatic cutters and setting systems improve shape accuracy.
Drying & Firing
Bricks are dried, loaded, fired, cooled, sorted and dispatched.
24–26 Door HHK with 10 Channel Small Tunnel Dryer
A 24–26 door Hybrid Hoffman Kiln combined with a 10 channel small tunnel dryer is one of the most practical solutions for medium to large clay brick projects. It improves drying control, reduces open-yard drying dependency and supports more stable production in rainy or winter seasons.
The dryer can reuse recovered heat from the kiln system, helping reduce external fuel demand while improving green brick strength before firing. This combination gives investors better quality control, fewer drying cracks and stronger final bricks.
Planning Requirements for HHK Brick Plant
Proper planning of land, clay, utility, internal transport and automation level is important before final project design.
Land & Layout
Typical 50K/day plant may require around 4–5 acres, while larger plants may require 7–8 acres depending on storage, roads, dryer and automation.
Raw Material
Clay must have suitable plasticity, shrinkage, particle size and firing behavior. Pulverized coal is normally mixed with clay for internal fuel.
Utilities
Electricity is required for machinery, blowers, dryer fans, conveyor system, mixer, extruder, automatic cutter and handling equipment.
Internal Transport
Rail line, trolley, ferry car, pusher and tractor system must be planned for smooth material and brick movement.
Clay Preparation & Brick Forming Equipment
A balanced machinery line ensures stable clay preparation, accurate forming, better drying, and smooth kiln operation.
Box Feeder
Stable clay feeding for continuous production.
Crusher
Crushing and particle size control for clay preparation.
Mixer
Uniform mixing of clay, water and internal fuel.
Automatic Line
Integrated forming, cutting and handling support.
HHK Plant Options
NES can support different HHK plant configurations based on investment level, land size, production target, dryer selection and automation requirement.
Complete Engineering Support
Next Engineering Solutions Ltd delivers technical planning, machinery support, kiln guidance, commissioning and long-term after-sales service for HHK brick plant projects.
Hybrid Hoffman Kiln Frequently Asked Questions
Important answers for investors planning a modern HHK clay brick manufacturing plant.
What is a Hybrid Hoffman Kiln?
A Hybrid Hoffman Kiln is a continuous chamber kiln where the firing zone moves gradually through multiple chambers. It uses internal fuel combustion and waste heat recovery for efficient brick firing.
What is the daily capacity of a 24–26 door HHK plant?
A typical 24–26 door Hybrid Hoffman Kiln can produce around 40,000 to 60,000+ bricks per day depending on brick size, chamber capacity, drying system, fuel quality and operating method.
Why combine HHK with a small tunnel dryer?
A small tunnel dryer improves drying quality, reduces weather dependency, shortens production cycle, lowers breakage and allows better utilization of waste heat from the kiln.
Is HHK suitable for Bangladesh, India and Nepal?
Yes, HHK is suitable for South Asian clay brick markets where investors need energy-efficient firing, lower production cost, stronger bricks and improved environmental performance.
HHK Kiln Construction, Dryer System & Automatic Brick Handling
These project images show the main sections of a Hybrid Hoffman Kiln based clay brick plant, including kiln chamber construction, green brick arrangement, automatic handling, small tunnel dryer operation and final kiln roof structure.
Kiln Chamber Construction
Strong masonry chamber and arch structure designed for continuous HHK firing operation.
Automatic Brick Setting
Automation improves brick arrangement, reduces labor pressure and increases production stability.
Green Brick Handling
Controlled handling protects green bricks before drying and firing, reducing breakage.
Kiln Roof & Chimney Area
Top kiln structure, fuel feeding point and chimney system support controlled combustion.
