Advanced Clay Brick Manufacturing Plant
High-efficiency, fully automated and energy-saving brick production solution with integrated Single Layer Dryer / Rack Dryer and Tunnel Kiln firing system for modern industrial brick projects.
Complete Tunnel Kiln & Single Layer Dryer Solution
Next Engineering Solutions Ltd provides advanced Tunnel Kiln integrated with Single Layer Dryer / Rack Dryer systems for modern clay brick manufacturing. This system is designed for stable production, uniform drying, better brick quality and optimized energy consumption.
In a modern brick plant, drying is as important as firing. A properly designed dryer reduces cracks, improves strength and helps the tunnel kiln produce consistent color and quality.
What is a Single Layer Dryer?
A Single Layer Dryer is a continuous drying system where green bricks are placed in single-layer trays or racks. Hot air flows evenly across every brick through controlled temperature and humidity zones.
The system can reuse waste heat from the tunnel kiln, helping reduce fuel consumption while improving drying quality and production stability.
Even Airflow
Uniform hot air distribution across each brick layer.
Zone Control
Temperature and humidity controlled by different drying zones.
Waste Heat Use
Hot air from kiln cooling can be reused for drying.
Automation Ready
Suitable for robotic stacking and automatic handling.
Why Single Layer Dryer is Better for Modern Brick Plants
Designed for reliable drying, better quality control, lower defects and efficient operation in medium to large automatic clay brick production lines.
Uniform Drying
Single-layer brick placement provides equal airflow and reduces drying cracks, bending and warping.
High Quality Output
Stable moisture removal helps produce stronger bricks with consistent size, color and firing result.
Energy Saving
Waste heat from tunnel kiln can be used to reduce additional fuel consumption in the drying stage.
Process Control
Multi-zone temperature and humidity control supports stable operation and predictable production quality.
Single Layer Dryer System

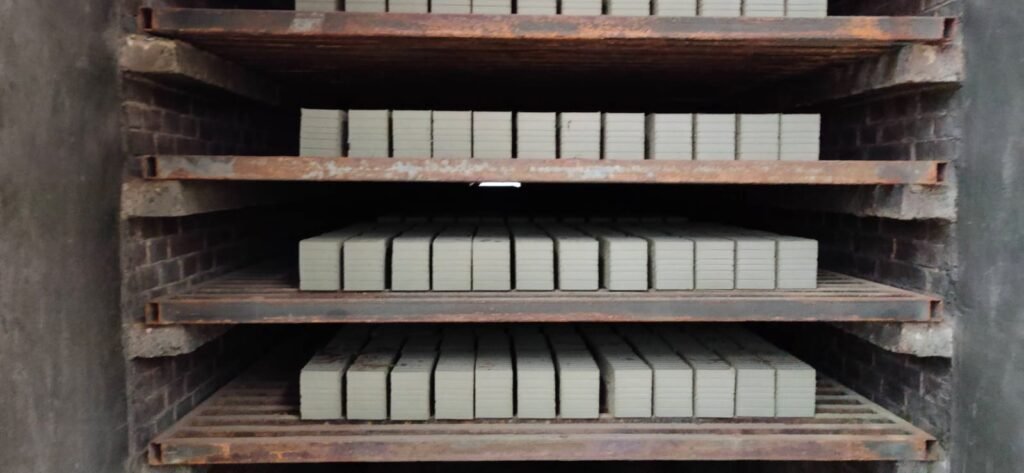

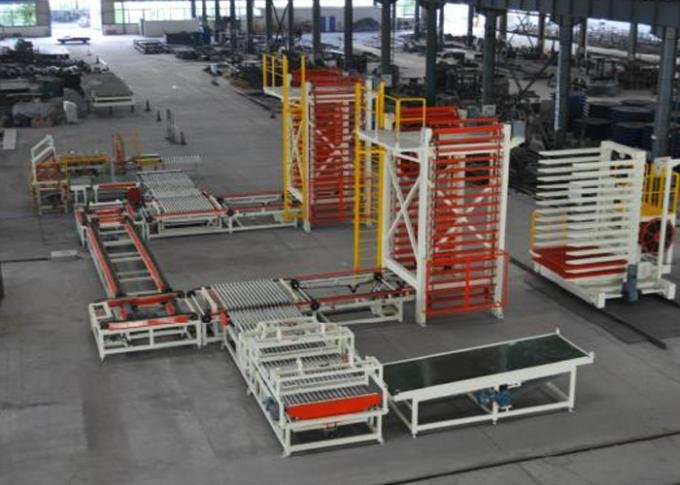

Organized dryer views showing rack movement, brick loading, drying frames and automatic handling equipment.

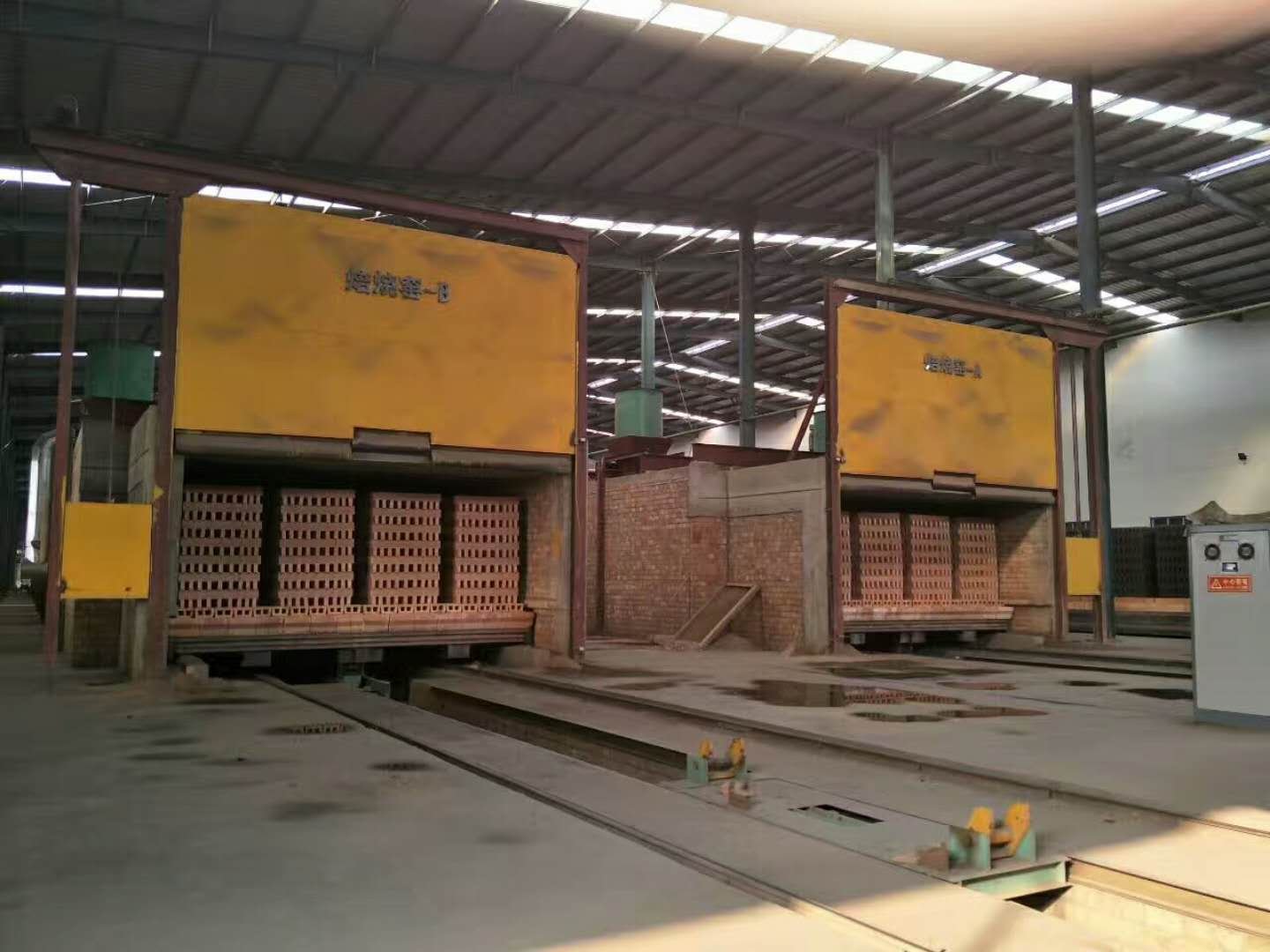

Continuous Firing for Strong & Consistent Bricks

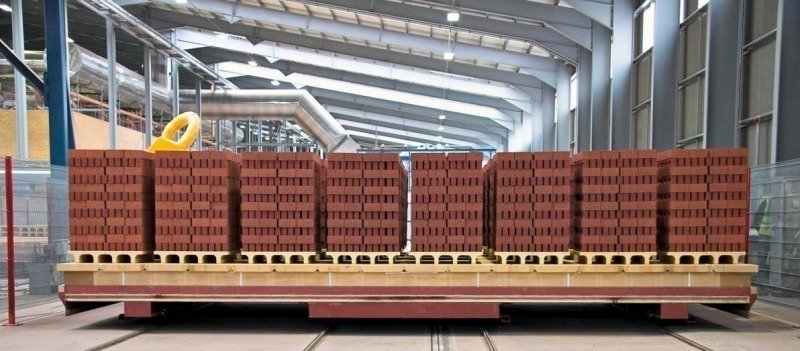

The tunnel kiln is the firing heart of a modern clay brick manufacturing plant. Green bricks enter on kiln cars and move through pre-heating, firing and cooling zones under controlled conditions.
When combined with a Single Layer Dryer, the kiln receives properly dried bricks, which improves firing quality, reduces defects and supports continuous industrial production.

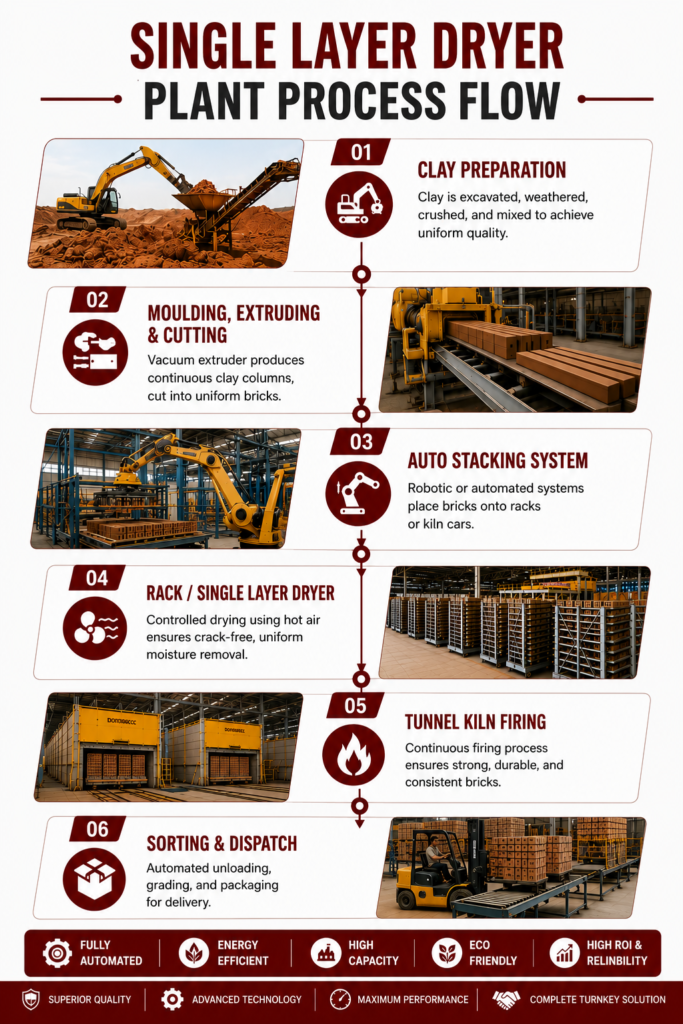

From Clay Preparation to Finished Brick Dispatch
A complete plant must be designed as one integrated system where clay preparation, extrusion, drying, firing and unloading work together smoothly.
Clay Preparation
Clay is excavated, weathered, crushed and mixed to achieve uniform quality.
Extruding & Cutting
Vacuum extruder produces continuous clay columns, then cuts them into uniform bricks.
Auto Stacking System
Robotic or automatic systems place bricks onto racks or kiln cars.
Single Layer Dryer
Controlled drying with hot air ensures uniform moisture removal and fewer cracks.
Tunnel Kiln Firing
Continuous firing ensures durable, strong and consistent finished bricks.
Sorting & Dispatch
Finished bricks are unloaded, graded, packed and prepared for delivery.
Where to Use Single Layer Dryer System
Dryer & Kiln Combination Comparison
| Combination | Quality | Uniformity | Defects | Production Level | Energy Efficiency |
|---|---|---|---|---|---|
| SLD + Tunnel Kiln | ★★★★★ Excellent | Excellent | Very Low | Large | Very High |
| Tunnel Dryer + Tunnel Kiln | ★★★★☆ Good | Good | Low–Medium | Medium–Large | Medium–High |
| Small Tunnel Dryer + Hoffman Kiln | ★★★☆☆ Moderate | Moderate | Medium–High | Small–Medium | Medium |
Suitable Brick Products
Complete Turnkey Project Support
