Why Coal-Fired Clay Brick Plants Should Use a Smoke Filter Tower
A practical flue gas treatment solution for cleaner, more responsible and more professional tunnel kiln operation.
Coal-fired clay brick manufacturing plants are still widely used in many regions because coal is available, affordable and suitable for high-temperature firing. However, coal combustion inside a tunnel kiln can generate smoke, dust, ash, sulfur gases, acidic gases and visible emissions.
For modern brick investors, cleaner production is no longer optional. It directly affects environmental approval, factory reputation, worker comfort, community acceptance and long-term plant sustainability.

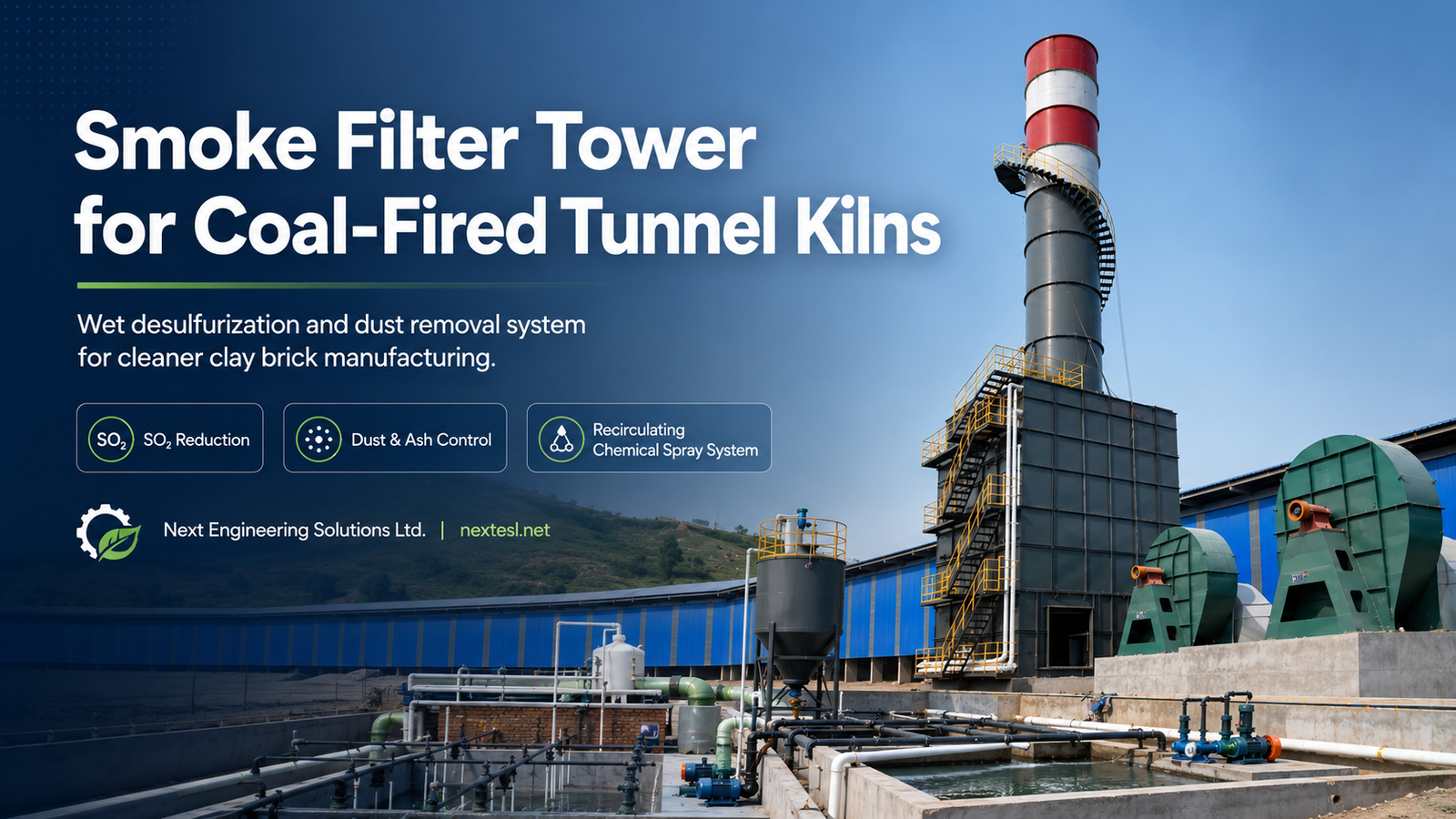

A Smoke Filter Tower, also known as a wet desulfurization and dust removal tower, is one of the most practical flue gas treatment systems for coal-fired tunnel kiln brick plants.
What Is a Smoke Filter Tower?
A smoke filter tower is a flue gas cleaning system installed between the tunnel kiln exhaust system and the chimney. In many Chinese coal-fired tunnel kiln projects, this system works as a wet scrubber.
The flue gas enters the tower, where chemical water is sprayed through multiple nozzles. Dust particles, ash and acidic gases come into contact with the sprayed liquid and are captured or neutralized before the treated gas is discharged through the stack.
Why Coal-Fired Tunnel Kilns Need Smoke Treatment
Coal-fired tunnel kilns operate continuously and produce large volumes of hot flue gas. If the smoke is released without proper treatment, it can create visible air pollution, dust deposition, odor problems and environmental compliance issues.
For clay brick plants, emissions may come from two main sources. The first source is coal combustion, which can produce ash, sulfur dioxide, smoke, carbon monoxide, nitrogen oxides and fine particles. The second source is the clay itself. Some clay materials may contain sulfur, fluorine, chlorine or organic matter that can be released during firing.
This is why a professional tunnel kiln project should include a proper flue gas treatment system along with kiln, dryer and machinery design.

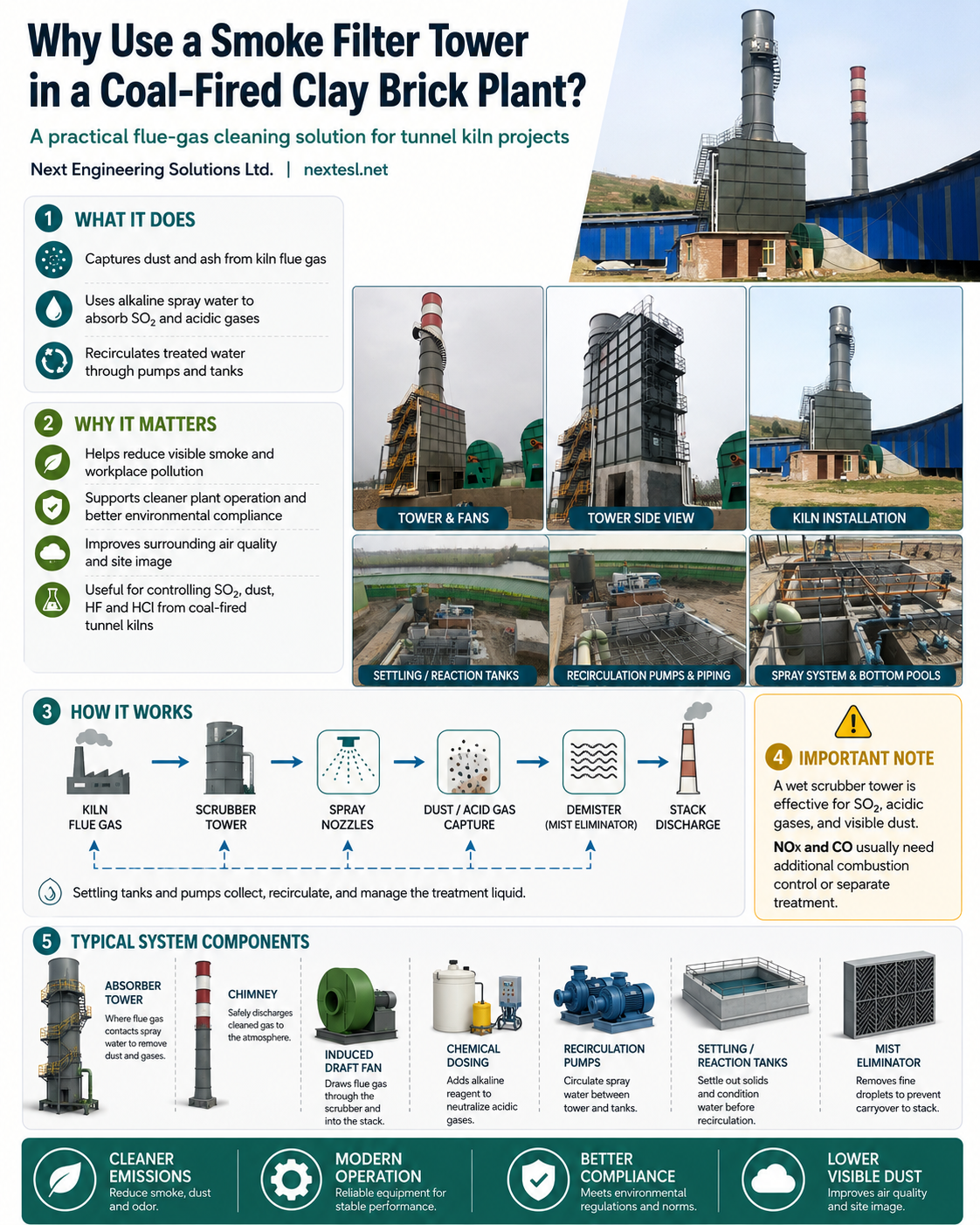

How the Smoke Filter Tower Works
The typical working process is:
Scrubber Tower →
Chemical Spray →
Dust & Acid Gas Capture →
Mist Eliminator →
Stack Discharge
Inside the tower, alkaline water is sprayed into the smoke stream. This chemical water can absorb and neutralize acidic gases such as SO₂, HCl and HF. At the same time, dust and ash particles are captured by water droplets and fall into the bottom tank or settling pool.
The dirty water then goes to the bottom pools. Solid particles settle, sludge is removed and the treated liquid is recirculated back to the tower by pumps. Therefore, the bottom pools, recirculation pumps, chemical dosing system and sludge handling system are essential parts of the complete solution.
Main Benefits of Using a Smoke Filter Tower
1. Reduces Dust, Ash and Visible Smoke
A wet smoke filter tower helps capture ash and dust particles before the flue gas reaches the chimney. This improves the plant environment and reduces visible pollution around the factory.
2. Helps Control SO₂ from Coal Burning
Sulfur dioxide is one of the major concerns in coal-fired kilns. A wet desulfurization tower uses alkaline water to absorb and neutralize SO₂ from the flue gas.
3. Supports Cleaner Plant Operation
A plant with proper smoke treatment looks more professional, more responsible and more acceptable to authorities, investors, visitors and nearby communities.
4. Improves Site Image and Worker Environment
Less visible smoke and dust can improve the working atmosphere, reduce dust deposition on buildings and equipment and create a cleaner industrial site.
5. Helps Environmental Compliance
Different countries and regions have different emission limits. A properly designed smoke filter tower helps the plant move closer to local environmental requirements.
6. Adds Value to Modern Tunnel Kiln Projects
For investors planning a long-term automatic brick plant, flue gas treatment is an important part of responsible and sustainable project planning.
What Can the Smoke Filter Tower Remove?
| Pollutant | Control Performance | Practical Comment |
|---|---|---|
| Dust / Ash / PM | Good | Effective for visible dust and larger particles. Fine PM may need additional treatment depending on the required emission level. |
| SO₂ | Good | Can be controlled by alkaline chemical water, proper tower design and stable pH control. |
| HF / HCl | Useful | Acidic gases can be absorbed depending on raw material composition and chemical dosing condition. |
| NOx | Limited | Usually requires combustion control, SNCR, SCR or separate treatment if the emission limit is strict. |
| CO | Limited | Mainly controlled by proper firing, air control and kiln combustion operation. |
| CO₂ | Not removed | A normal smoke filter tower is not a carbon capture system. |
Important Buyer Advice
Many suppliers claim that a smoke filter tower can remove 90–95% of smoke, chemicals and ash. This may be possible for some pollutants, especially SO₂ and coarse dust, but the claim must be checked carefully.
A professional buyer should not accept only a general percentage. The correct requirement should be written as pollutant-wise outlet emission concentration, such as PM, SO₂, NOx, HF or HCl in mg/Nm³, according to the local environmental standard.
Questions to Ask Before Buying a Smoke Filter Tower
NES Engineering Recommendation
For a modern coal-fired tunnel kiln, Next Engineering Solutions Ltd. recommends selecting the smoke filter tower based on actual project conditions, not only by appearance or price.
The system should be designed according to plant capacity, coal consumption, sulfur content in coal, clay chemical composition, flue gas volume, required emission limit, chimney design, available water treatment arrangement and local environmental regulations.
For stricter projects, additional systems such as pre-dust collection, bag filter, wet electrostatic precipitator, secondary wet dust removal or NOx treatment may be considered depending on the emission target.
Conclusion
A smoke filter tower is a practical and important system for coal-fired clay brick tunnel kiln plants. It helps reduce dust, ash, SO₂, acidic gases and visible smoke from kiln flue gas through wet scrubbing, chemical spray and recirculating treatment water.
For investors planning a coal-fired automatic brick plant, this system can improve environmental performance, reduce visible pollution, support compliance and create a cleaner industrial image.
Next Engineering Solutions Ltd. provides complete clay brick manufacturing plant solutions, including tunnel kiln systems, dryers, machinery lines, flue gas treatment systems, plant layout, installation support, commissioning and production guidance.
